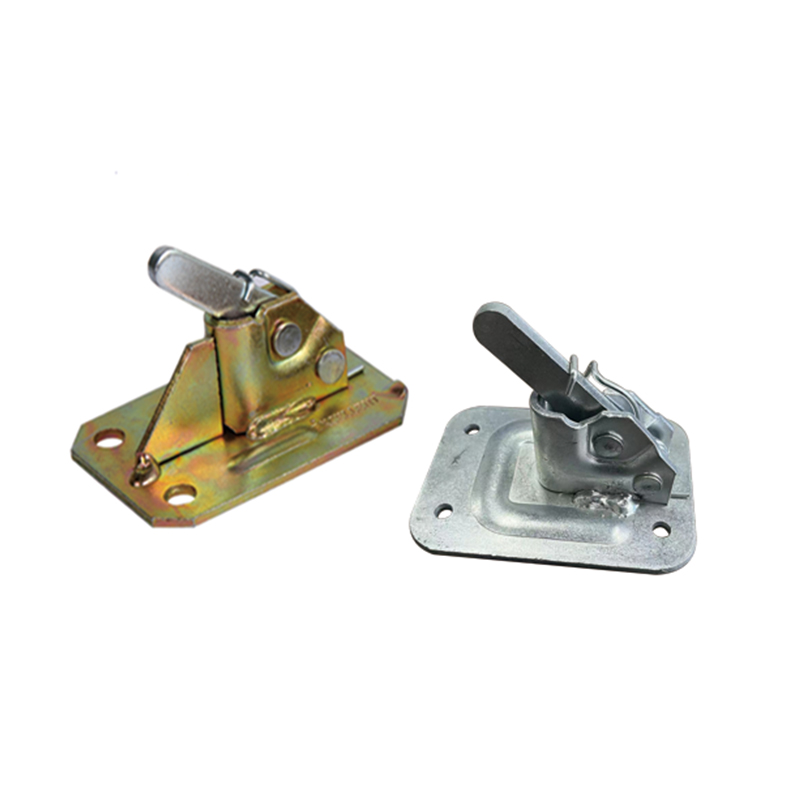

Made from high-strength alloy steel or cast steel to ensure durability and strength under heavy loads.
Details Display
1. Material:
Made from high-strength alloy steel or cast steel to ensure durability and strength under heavy loads.
The surface is treated with galvanization, hot-dip galvanization, or anti-rust coating, providing excellent corrosion resistance for long-term use in harsh construction environments.
2. Specifications:
Available in various sizes and models to meet the specific needs of different aluminum formwork systems.
3. Applications:
Primarily used to secure and connect vertical and horizontal panels in the aluminum formwork system, preventing the panels from shifting or deforming during concrete pouring.
The casted pane clamp locks the edges of adjacent panels tightly together, ensuring the integrity and stability of the formwork system.
Widely used in formwork support systems for walls, columns, and slabs to ensure accurate panel positioning.
4. Features:
High Strength: The casted pane clamp can withstand significant pressure during concrete pouring, ensuring the formwork system remains stable.
Durability: With its specially treated surface, the clamp offers excellent corrosion resistance, making it suitable for use in various complex construction environments.
Easy to Operate: It is simple to install and remove, allowing for quick assembly and disassembly of formwork panels, improving construction efficiency.
Reusable: The casted pane clamp is highly durable and can be reused multiple times, reducing overall construction costs.
5. Installation Method:
In the aluminum formwork system, the casted pane clamp is manually used to tightly secure the edges of adjacent panels, ensuring they are aligned and firmly connected.
After concrete is poured, the clamp can be easily loosened and removed, simplifying the dismantling of the formwork.
Summary:
The Casted Pane Clamp plays a critical role in connecting and securing aluminum formwork panels, ensuring stability and safety during the construction process. Its high strength, corrosion resistance, and ease of use make it an essential component in aluminum formwork systems, helping to improve construction efficiency and reduce overall costs.
Application Cases
Large-Scale Residential Community Aluminum Formwork Application
Large-Scale Residential Community Aluminum Formwork Application
A large residential community project in New Delhi City, consisting of 10 high-rise residential buildings. Given the scale of the development, the contractor needed to complete the structure of multiple buildings in a short time frame.
Medium-Sized Residential Community Aluminum Formwork Application
Medium-Sized Residential Community Aluminum Formwork Application
A mid-sized residential community in Mumbai City, featuring 5 buildings ranging from 15 to 20 stories. The contractor aimed to reduce construction costs while maintaining quality and adhering to a tight timeline.
High-Rise Residential Community Aluminum Formwork Application
High-Rise Residential Community Aluminum Formwork Application
A high-rise residential community in Ho Chi Minh City, consisting of buildings over 30 stories. The complexity of the high-rise structure posed a significant challenge, and the contractor needed a solution that could expedite construction.
Eco-Friendly Residential Community Aluminum Formwork Application
Eco-Friendly Residential Community Aluminum Formwork Application
A sustainable residential community project designed with an emphasis on low-carbon construction. The project included 7 mid-rise residential buildings, and the contractor aimed to incorporate green construction practices and resource conservation
