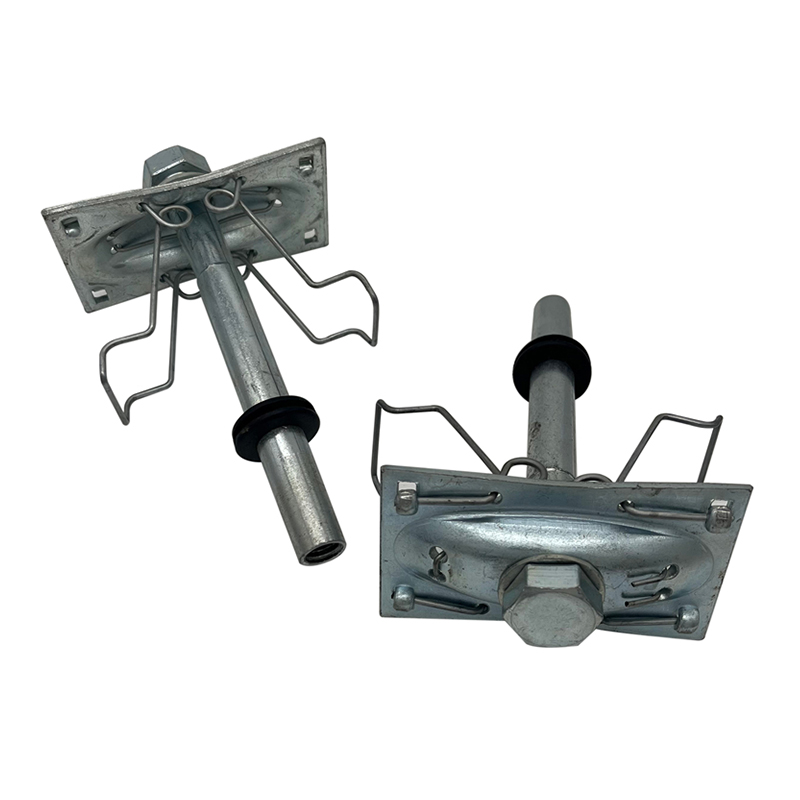

Tie Rod: Typically made of high-strength steel, the tie rod has good tensile strength and corrosion resistance. One end is fixed within the concrete structure, while the other end connects to a tensioning device or support bracket.
Details Display
Water Stop Seal: This is a key component, usually made of rubber or other elastic materials, installed between the tie rod and the concrete. Its primary function is to fill gaps and prevent water from seeping through the rod holes into the concrete.
Sealing Elements: These enhance the waterproof performance of the assembly and are often placed outside the water stop seal. They can be made from various materials like rubber or plastic, depending on the requirements of the application environment.
Installation Method: The water stop tie rod assembly is typically embedded in the concrete during construction to ensure stability and sealing. After the concrete is poured, tension is applied to the rod using a tensioning device to enhance the overall structural stability.
Applications: This assembly is widely used in underground projects (such as basements and tunnels), dams, reservoirs, and pump stations, particularly in environments with high water pressure.
Maintenance and Inspection: Regular inspections of the sealing integrity and material aging are essential for long-term use to ensure effective water penetration prevention.
Application Cases
Large-Scale Residential Community Aluminum Formwork Application
Large-Scale Residential Community Aluminum Formwork Application
A large residential community project in New Delhi City, consisting of 10 high-rise residential buildings. Given the scale of the development, the contractor needed to complete the structure of multiple buildings in a short time frame.
Medium-Sized Residential Community Aluminum Formwork Application
Medium-Sized Residential Community Aluminum Formwork Application
A mid-sized residential community in Mumbai City, featuring 5 buildings ranging from 15 to 20 stories. The contractor aimed to reduce construction costs while maintaining quality and adhering to a tight timeline.
High-Rise Residential Community Aluminum Formwork Application
High-Rise Residential Community Aluminum Formwork Application
A high-rise residential community in Ho Chi Minh City, consisting of buildings over 30 stories. The complexity of the high-rise structure posed a significant challenge, and the contractor needed a solution that could expedite construction.
Eco-Friendly Residential Community Aluminum Formwork Application
Eco-Friendly Residential Community Aluminum Formwork Application
A sustainable residential community project designed with an emphasis on low-carbon construction. The project included 7 mid-rise residential buildings, and the contractor aimed to incorporate green construction practices and resource conservation
