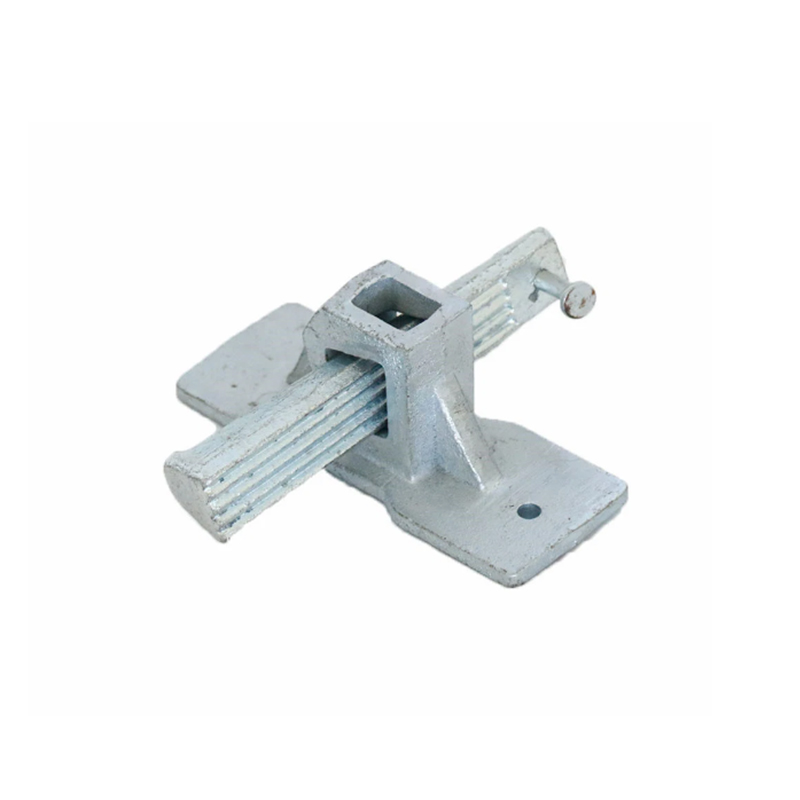

Casted Panel Clamp

1. Material:

Made from high-strength alloy steel or cast steel to ensure durability and strength under heavy loads.

The surface is treated with galvanization, hot-dip galvanization, or anti-rust coating, providing excellent corrosion resistance for long-term use in harsh construction environments.

2. Applications:

Primarily used to secure and connect vertical and horizontal panels in the aluminum formwork system, preventing the panels from shifting or deforming during concrete pouring.

The casted pane clamp locks the edges of adjacent panels tightly together, ensuring the integrity and stability of the formwork system.

Widely used in formwork support systems for walls, columns, and slabs to ensure accurate panel positioning.

3. Features:

High Strength: The casted pane clamp can withstand significant pressure during concrete pouring, ensuring the formwork system remains stable.

Durability: With its specially treated surface, the clamp offers excellent corrosion resistance, making it suitable for use in various complex construction environments.

Easy to Operate: It is simple to install and remove, allowing for quick assembly and disassembly of formwork panels, improving construction efficiency.

Reusable: The casted pane clamp is highly durable and can be reused multiple times, reducing overall construction costs.

4. Installation Method:

In the aluminum formwork system, the casted pane clamp is manually used to tightly secure the edges of adjacent panels, ensuring they are aligned and firmly connected.

After concrete is poured, the clamp can be easily loosened and removed, simplifying the dismantling of the formwork.

Summary:

The Casted Pane Clamp plays a critical role in connecting and securing aluminum formwork panels, ensuring stability and safety during the construction process. Its high strength, corrosion resistance, and ease of use make it an essential component in aluminum formwork systems, helping to improve construction efficiency and reduce overall costs.
